Inside Our Dongguan CNC Workshop: Machines, Tooling and Inspection

Every photograph on this page was taken on our own floor in Dongguan, Guangdong. Machining centres, lathes, milling machines, grinding and wire EDM — plus the inspection bench where parts are measured before they ship.

Workshop Floor

Machining floor and equipment

The floor is laid out by process: machining centres and turn-mill centres take the multi-feature work, lathes cover turned parts and one-offs, and surface grinders and wire EDM finish the jobs a milling cutter cannot hold.

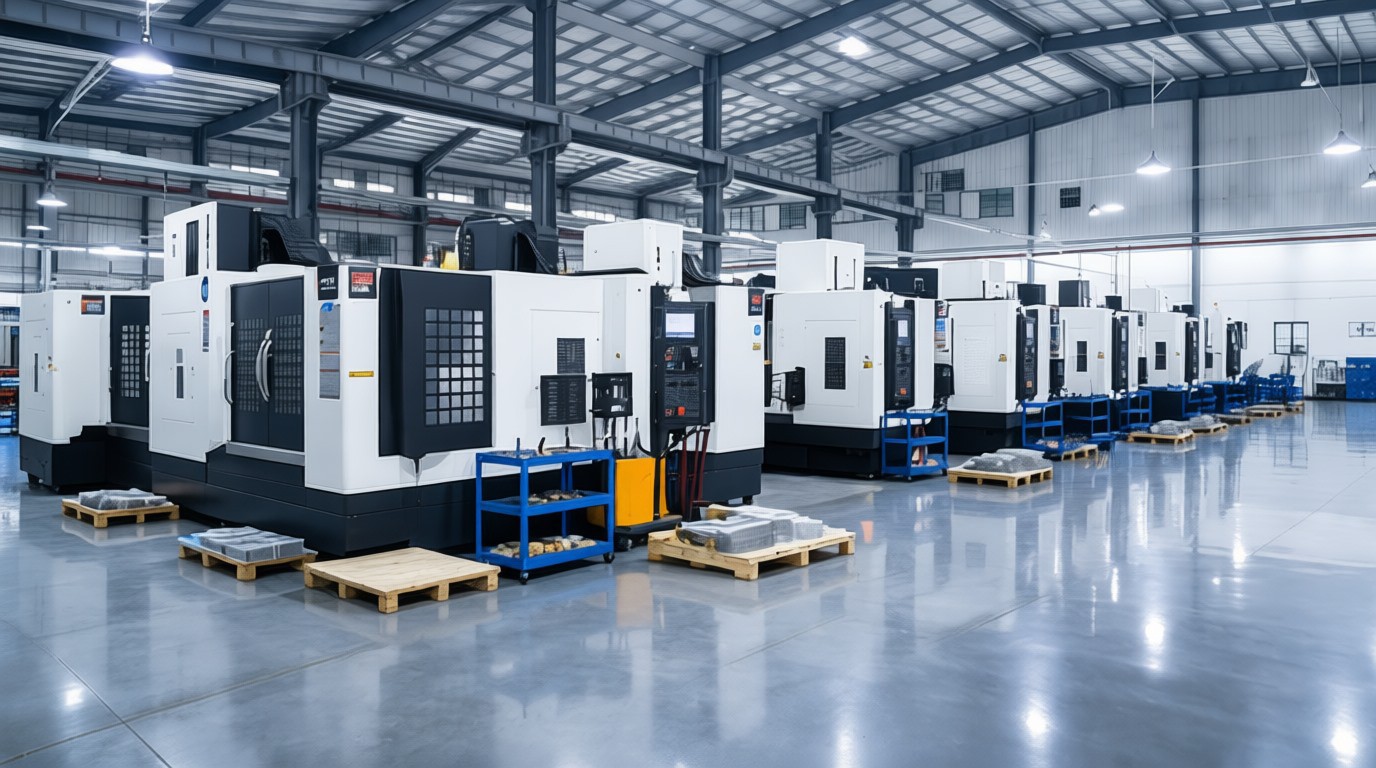

Wide view of the CNC workshop floor with machining centres, lathes and grinders
Workshop floor
Row of Talkan CNC vertical machining centres on the shop floor
Machining centre row
Close-up of the Talkan 12 machining centre with its control panel and tool trolley
Machining centre, close up
Second row of CNC machining centres in the Dongguan workshop
Machining centre line

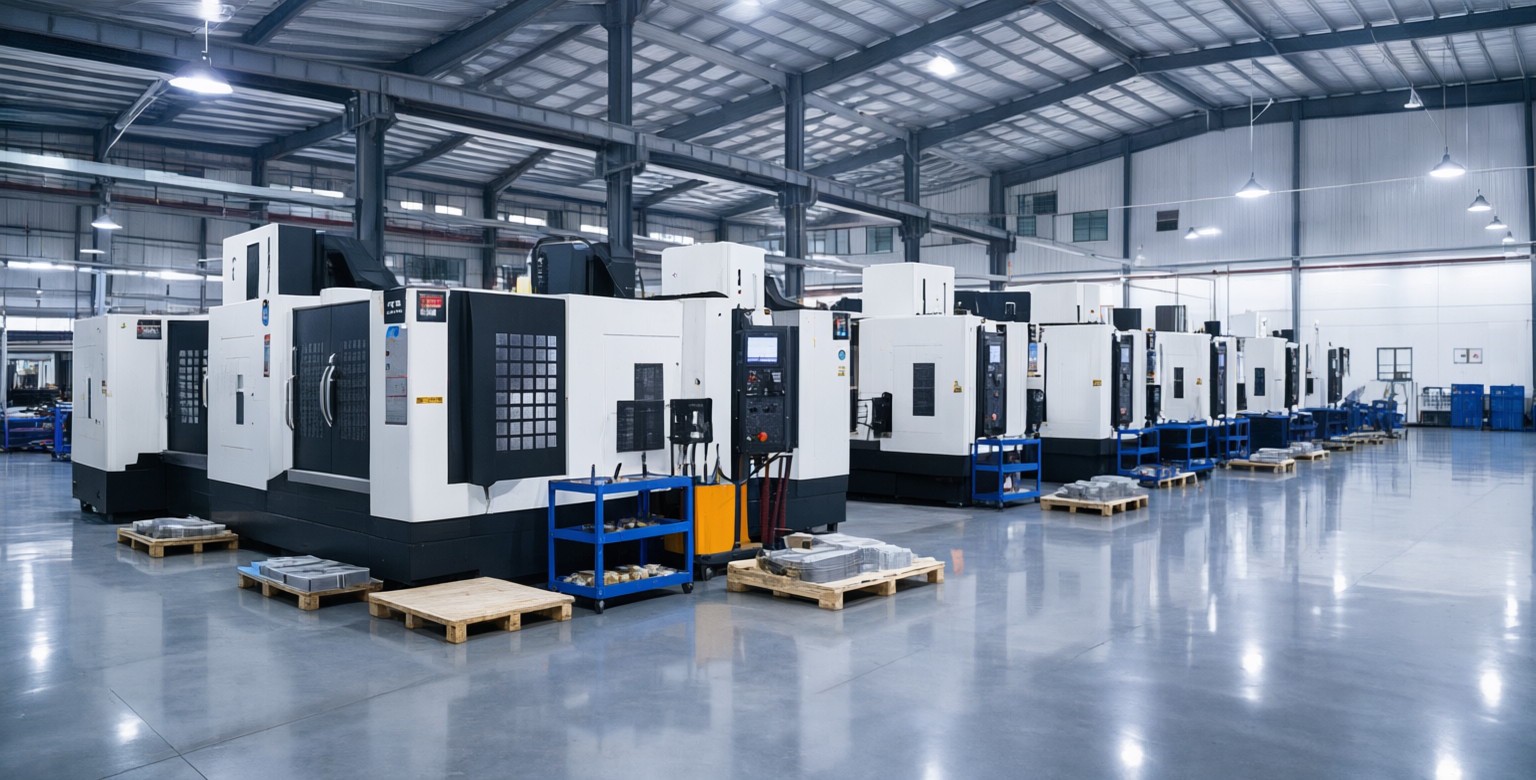

Line of CNC vertical machining centres along the workshop aisle
Machine line from the aisle

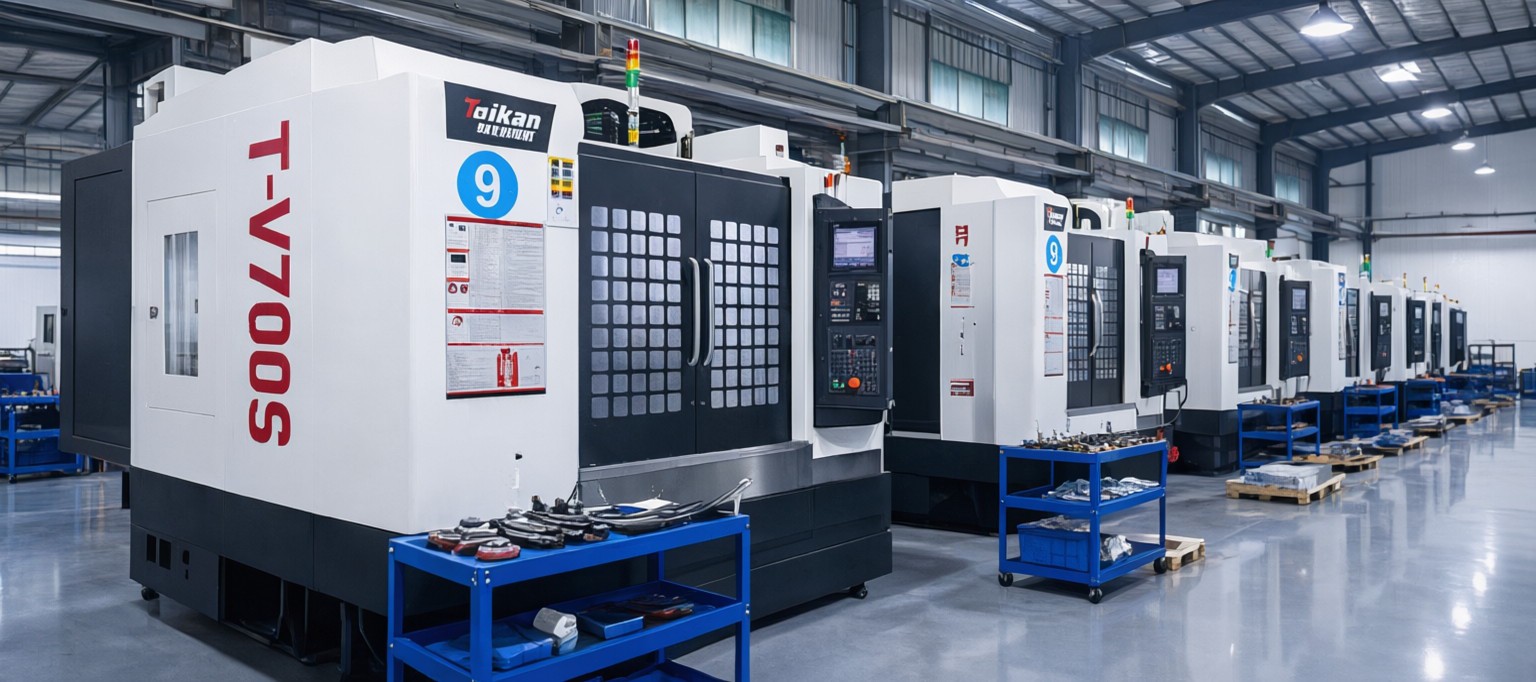

T-V700S machining centre with blue tool trolley on the shop floor
Machining centre and tooling

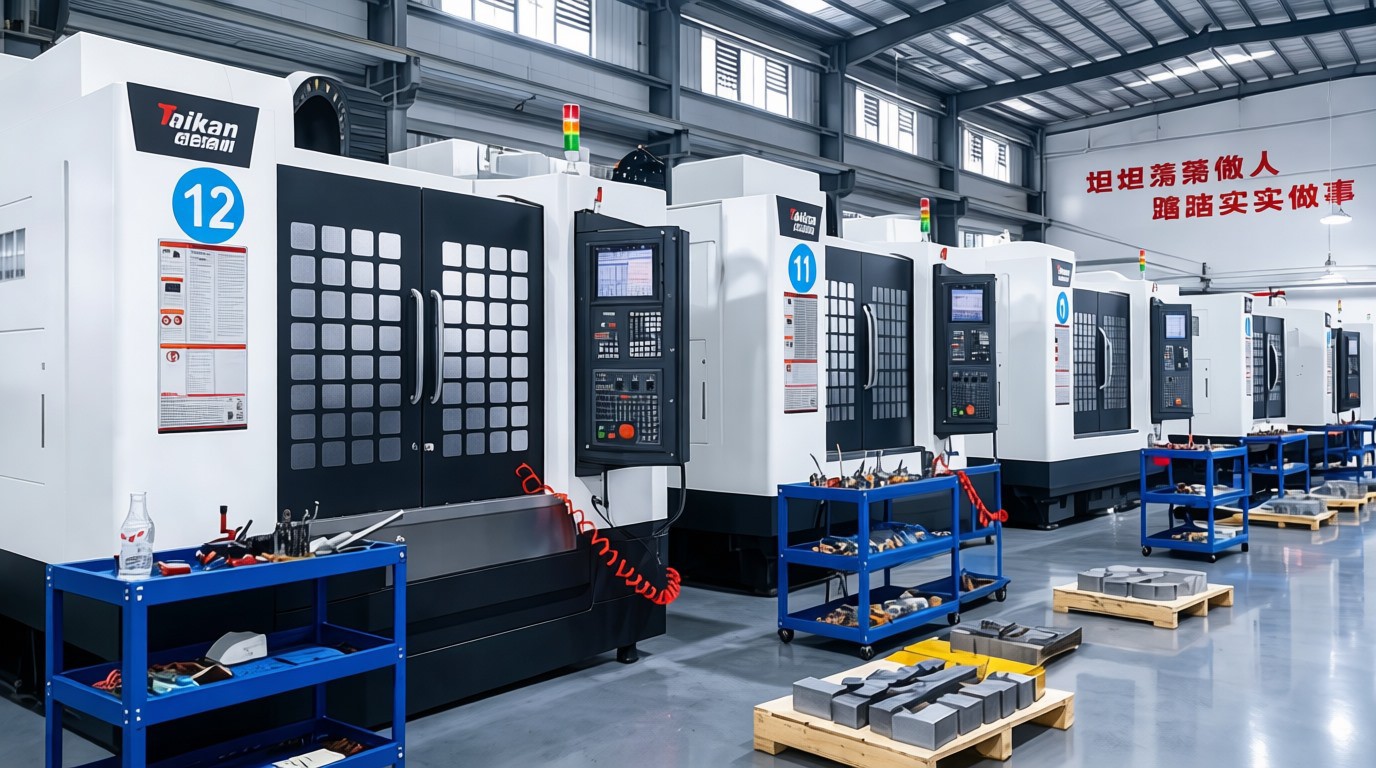

CNC vertical machining centre with tool trolleys and workpieces
Machining centre and pallets

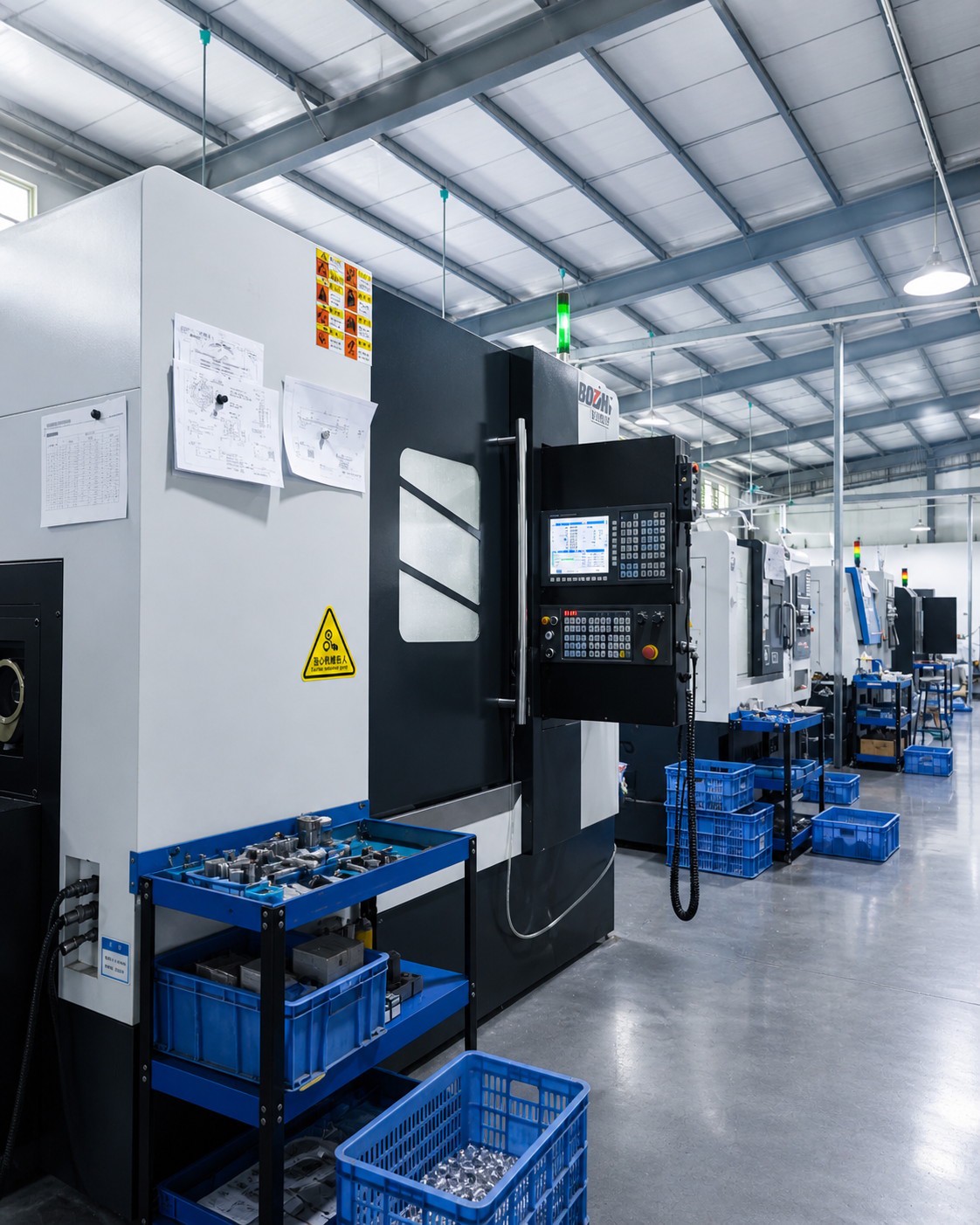

Close-up of a BDZ CNC vertical machining centre and its control panel
Control panel detail
Milling and turning area with turret milling machines and lathes
Milling and turning area
Surface grinding and wire EDM area for tight-tolerance finishing
Grinding and wire EDM area

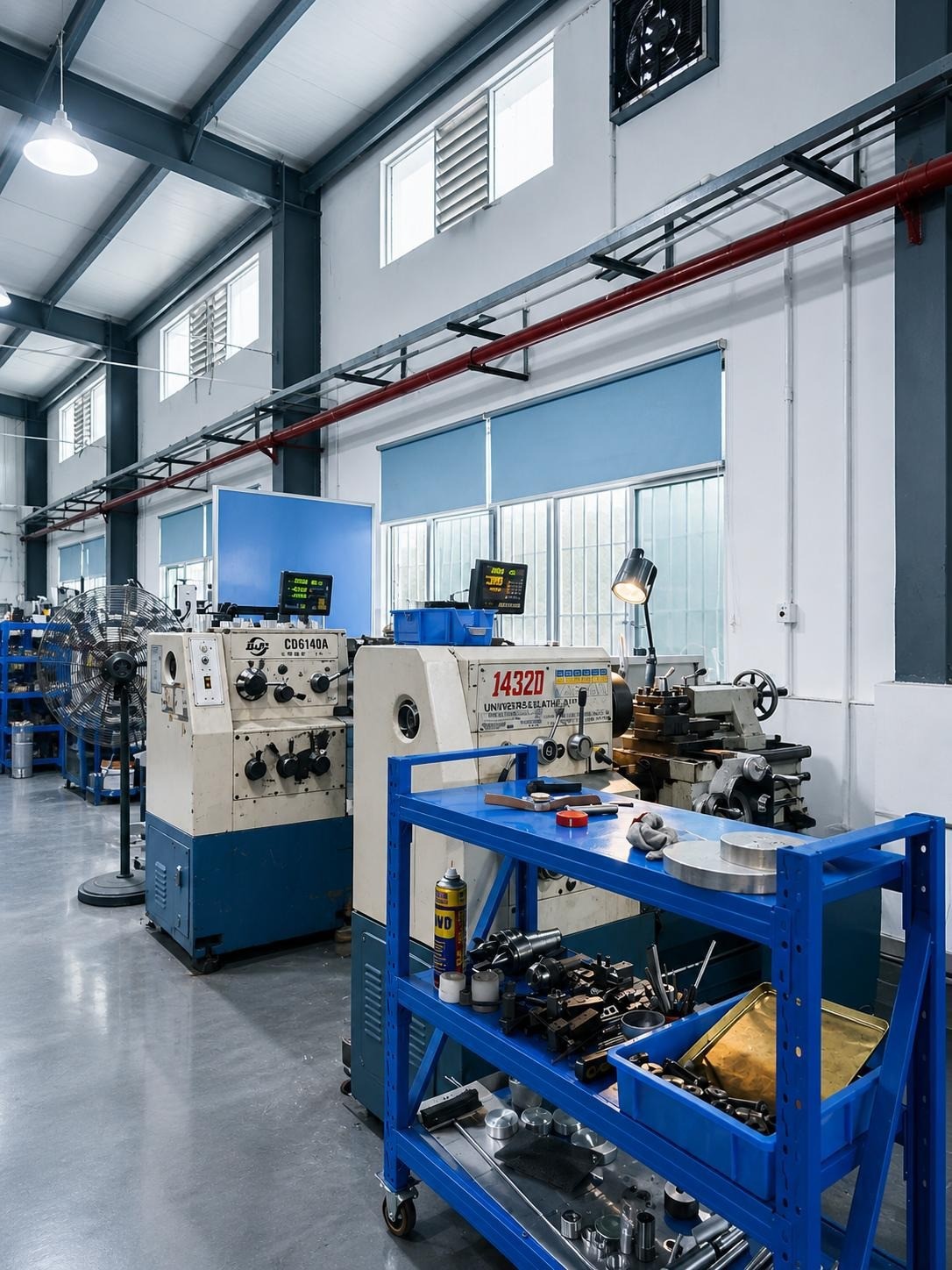

Conventional lathes set up with cutting tools and fixtures
Lathes set up with tooling
Assembly and inspection area where finished parts are checked before packing
Assembly and inspection area
Inspection Room

Measuring and inspection equipment

Parts are checked where they are made, not only at the end of the order. First-article inspection, in-process checks and final inspection run on the equipment below — measured by the same team that machined the part.

VMS vision measuring machine used for 2D dimensional inspection of machined parts
VMS vision measuring machine

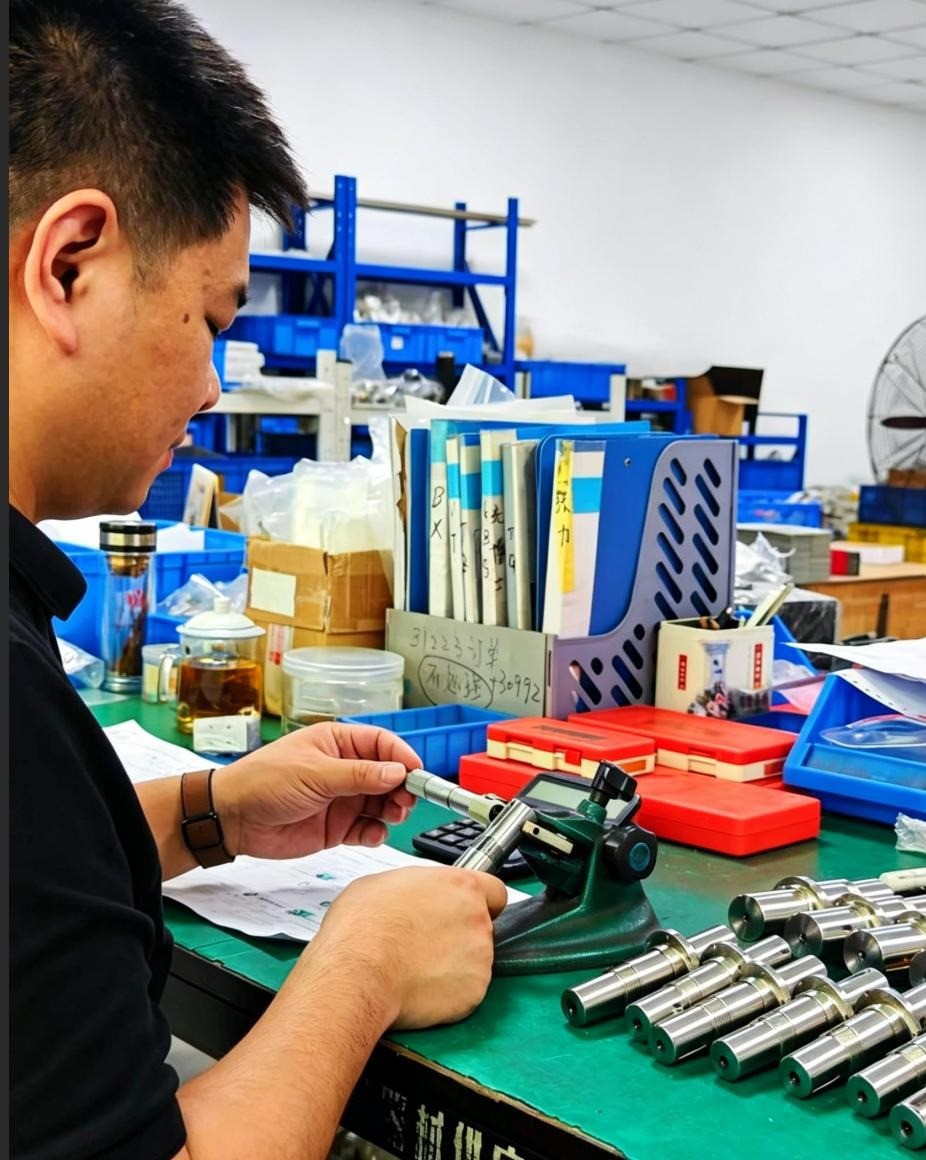

Inspection bench with a micrometer for first-article and in-process checks
Micrometer check at the bench

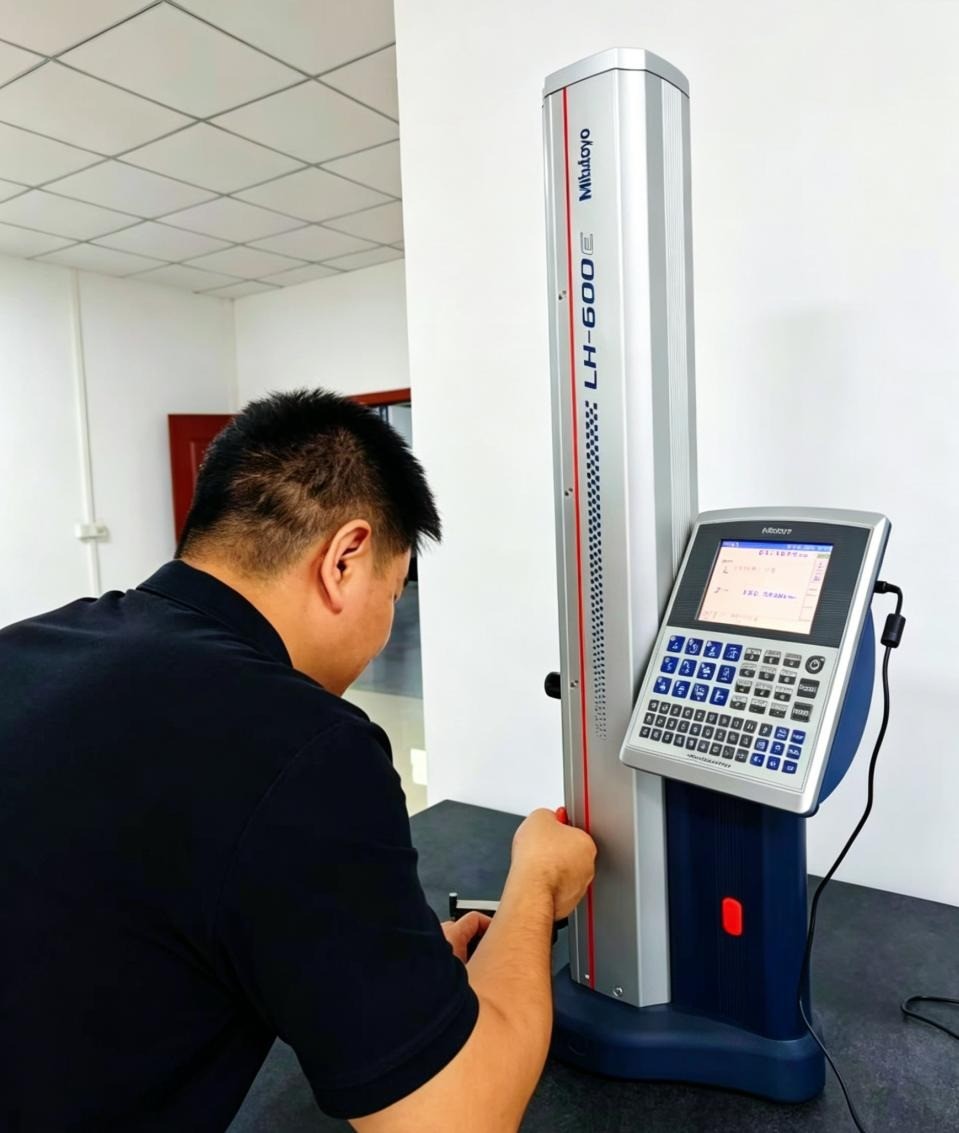

Mitutoyo LH-600 height gauge on the inspection bench
Mitutoyo LH-600 height gauge
