Custom Spherical Components, Machined to Your Drawings
Parts where the shape itself is the function — ball sockets, spherical seats, curved levers and blades that have to seat, pivot or sweep correctly.
When a Radius Has to Be Right
Spherical and curved profile machining is generated on the machine — four-axis machining centres and turn-mill lathes — and not hand-finished afterwards, so the radii, blends and ball forms repeat from batch to batch.
Ball sockets & spherical seats
Ball socket machining in concave and convex form, plus ball-end features and self-aligning seats that need a clean, repeatable contact area.

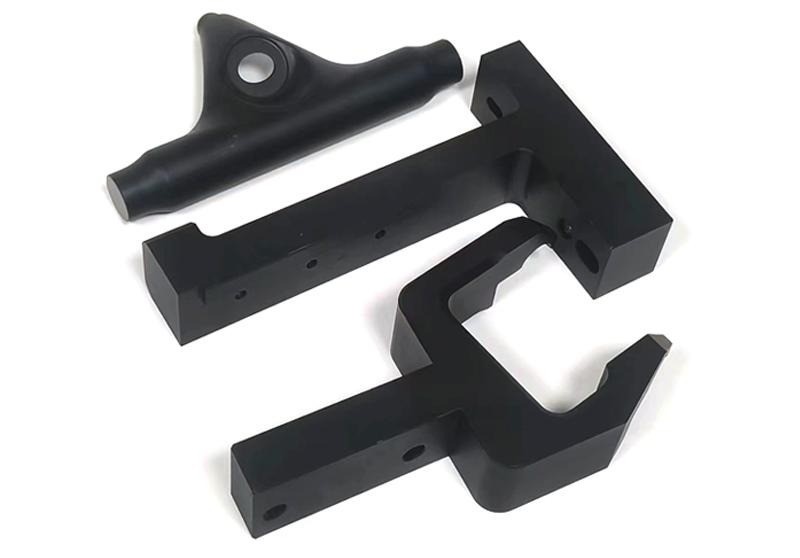

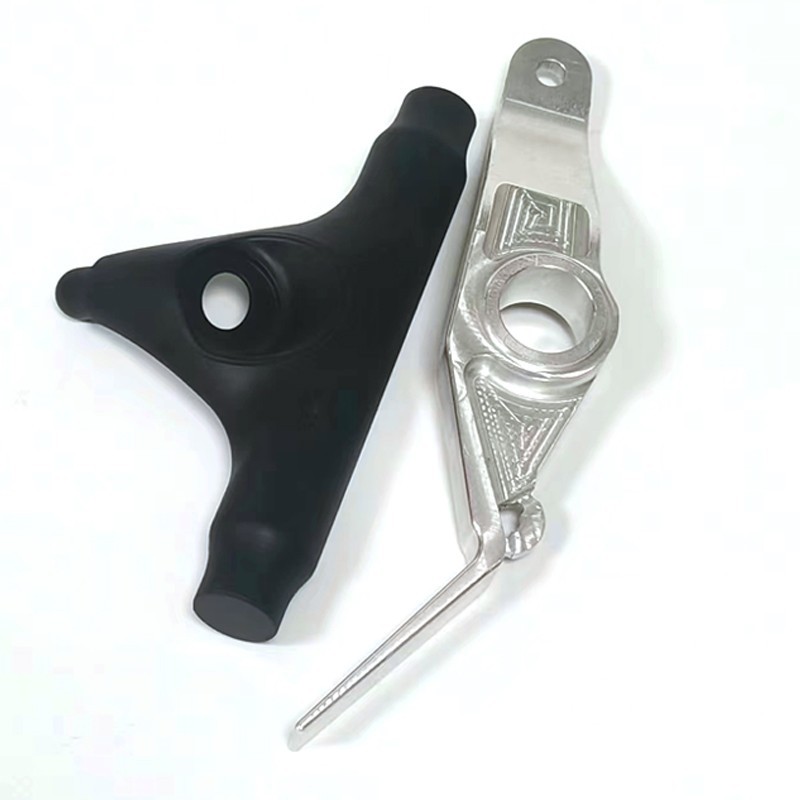

Curved levers & arms
Curved-profile levers, arms and blade forms with machined pivots and bores that must stay true to the profile.
Form-profiled turned parts
Radiused and blended profiles turned from bar — taper transitions, fillets and form-relieved shoulders.
Curved & Spherical Parts From Recent Batches
Representative geometry only — customer parts and drawings are never published.
A Model Saves a Lot of Questions
For curved parts, a 3D model or a dimensioned profile says more than a written description. We will flag anything the profile itself cannot guarantee.
Best input
- STEP / IGES model
- 2D drawing with the profile defined
- Mate part, if the curve seats against one
Useful extras
- Contact area or fit requirement
- Material and finish
- Quantity and target date
Tolerances and surface finishes are confirmed per drawing in your quotation. Our quality system is ISO 9001:2015, and each batch is dimensionally checked against the profile before it ships.
Send the Profile You Need Machined
Upload the model or drawing and tell us how the part seats. We reply within 24 hours.
Request a Quote →
